I am not sure what you mean? How many what do I have?
Well I went out for a ride this morning about 50 miles each way. After the first 30 miles the speedo just started reading 0. Then we got to the cafe and had breakfast etc and started to head back, after about 30 miles again the bike became hesitant and cut out. I rolled to a stop( I had tried bumping it while slowing down but it didn't want to know). After stopping I tried the starter button and nothing. I am guessing I need an alternator and a regulator. Luckly I went to the Isle of Man on Wednesday to watch the TT and if I had gone on the bike I wouldn't have even made the distance to the ferry port so I suppose it could have been worse.
Got a mate to come in his van to come and get me and the bike home. Just hope it aint wiped the speedo out too.
Got a mate to come in his van to come and get me and the bike home. Just hope it aint wiped the speedo out too.
Re: My Fireblade 1994 Now With Problems
Right just been and started on the bike. I was going to get the meter on the battery to see what was happening when running as I had the battery on charge but when I removed the seat I was greeted with this.

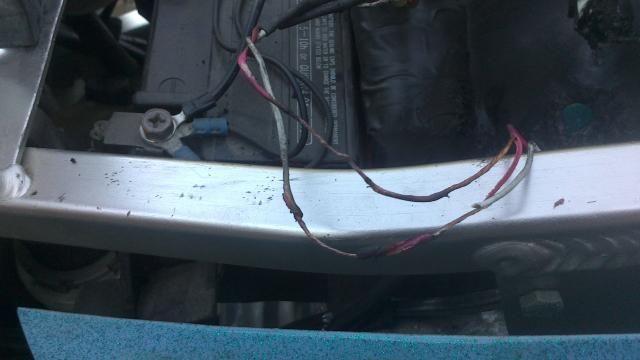

Now clearly there are some wires that have been really hot and melted the plug and the wiring has broken right off. Also the speedo wires were just above this plug hence why the speedo had stopped working. I am lucky the damage isn't worse really and I suppose I could have lost the bike altogether.
I seperated the speedo wires and spun the back wheel with the ignition on and the speedo seems to be ok as I managed 3mph which is probably the fastest it going to be going for the next few weeks.

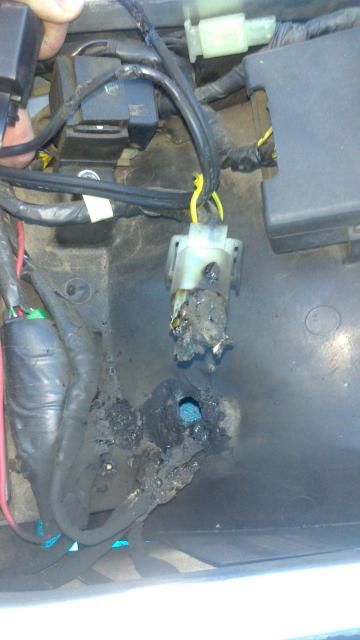

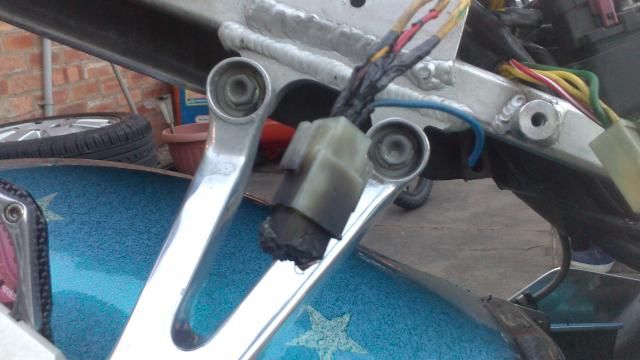

Here is a close up of the burnt plug that turns out to be the 3 wires that go from the alternator to the regulator.
I then turned to the regulator to see if there were any signs of heat but it appears not.

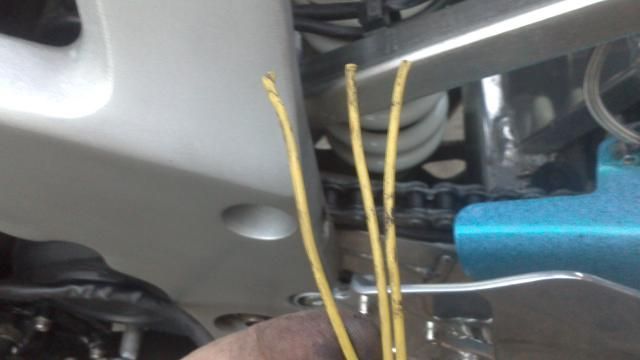

Finally I cut the bad out of the wiring that left me with 3 yellow wires either side of the now removed burnt area. Does it matter which yellow wire goes to which? I don't have a manual? I have no way of telling which wire went where and if it does matter why would Honda use the same colours?
So that is as far as I got, tomorrow I will remove the alternator so I can have a look at getting the correct part to replace it but as the regulator seems unburnt I am undecided weather to change it? I am leaning towards changing both but would be interested to hear what those in the know think?

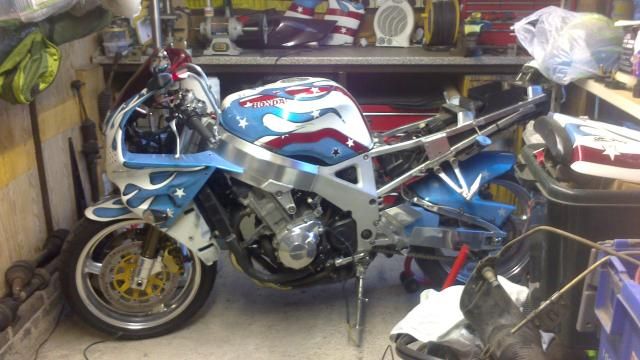

I am working in the shed which is a bit tight really but the garage is full of broken car projects so I have no choice but I have got it in the shed on a paddock stand where I can just get round it.
Right just been and started on the bike. I was going to get the meter on the battery to see what was happening when running as I had the battery on charge but when I removed the seat I was greeted with this.
Now clearly there are some wires that have been really hot and melted the plug and the wiring has broken right off. Also the speedo wires were just above this plug hence why the speedo had stopped working. I am lucky the damage isn't worse really and I suppose I could have lost the bike altogether.
I seperated the speedo wires and spun the back wheel with the ignition on and the speedo seems to be ok as I managed 3mph which is probably the fastest it going to be going for the next few weeks.
Here is a close up of the burnt plug that turns out to be the 3 wires that go from the alternator to the regulator.
I then turned to the regulator to see if there were any signs of heat but it appears not.
Finally I cut the bad out of the wiring that left me with 3 yellow wires either side of the now removed burnt area. Does it matter which yellow wire goes to which? I don't have a manual? I have no way of telling which wire went where and if it does matter why would Honda use the same colours?
So that is as far as I got, tomorrow I will remove the alternator so I can have a look at getting the correct part to replace it but as the regulator seems unburnt I am undecided weather to change it? I am leaning towards changing both but would be interested to hear what those in the know think?
I am working in the shed which is a bit tight really but the garage is full of broken car projects so I have no choice but I have got it in the shed on a paddock stand where I can just get round it.
Joined
·
8,389 Posts
Honda has a repair kit for that connector. It's called the ACG kit (Alternating Current Generator). Typical failure for the CBR's. It doesn't matter which yellow goes to which yellow. Glad it smoked that connector and not the reg rec. Good pics for reference too.
